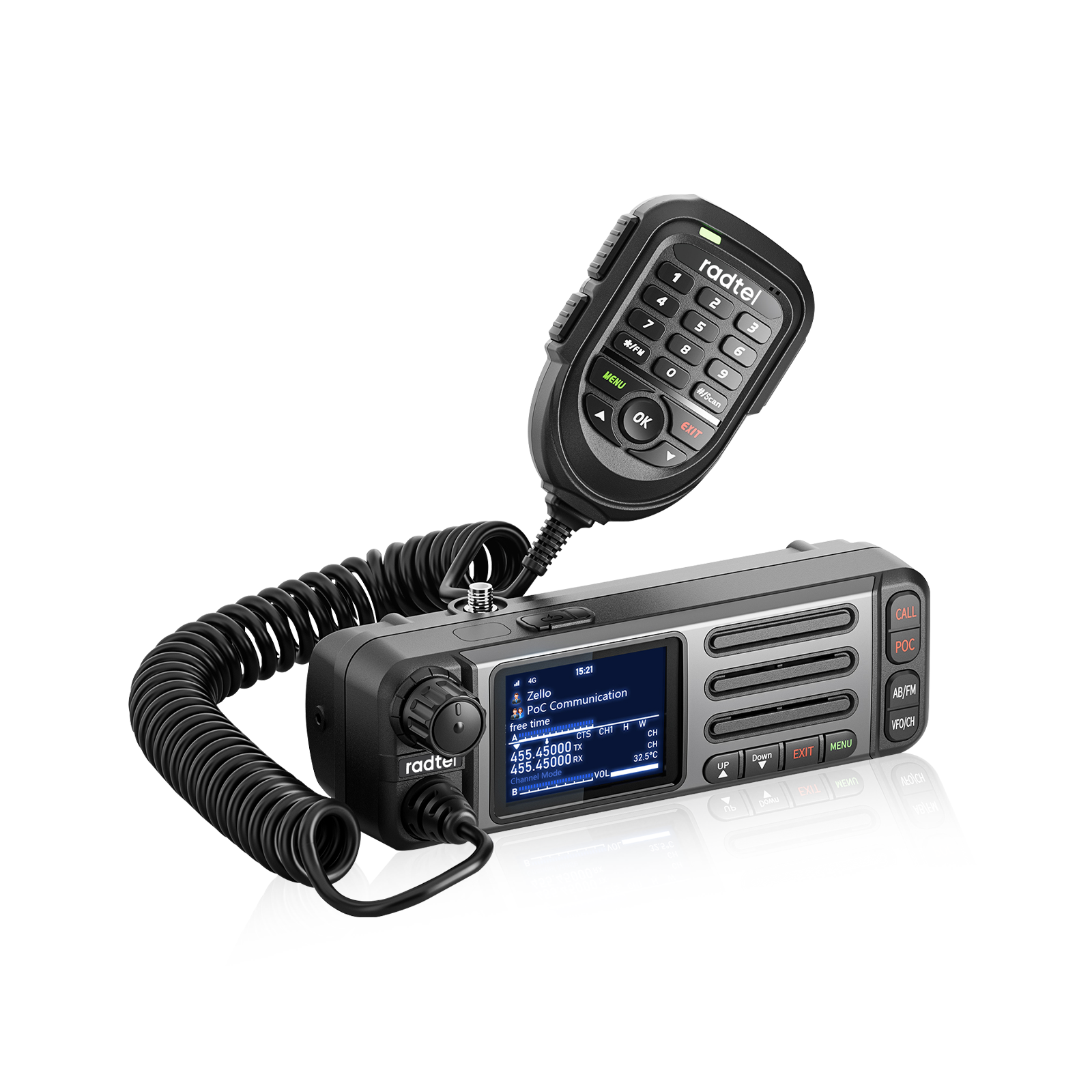

Radtel P89 POC+UHF Mobile Radio Andriod OS 400-470Mhz 35W Power Nationwide 5000 Miles with Zello WI-FI Bluetooth Unlimited Range

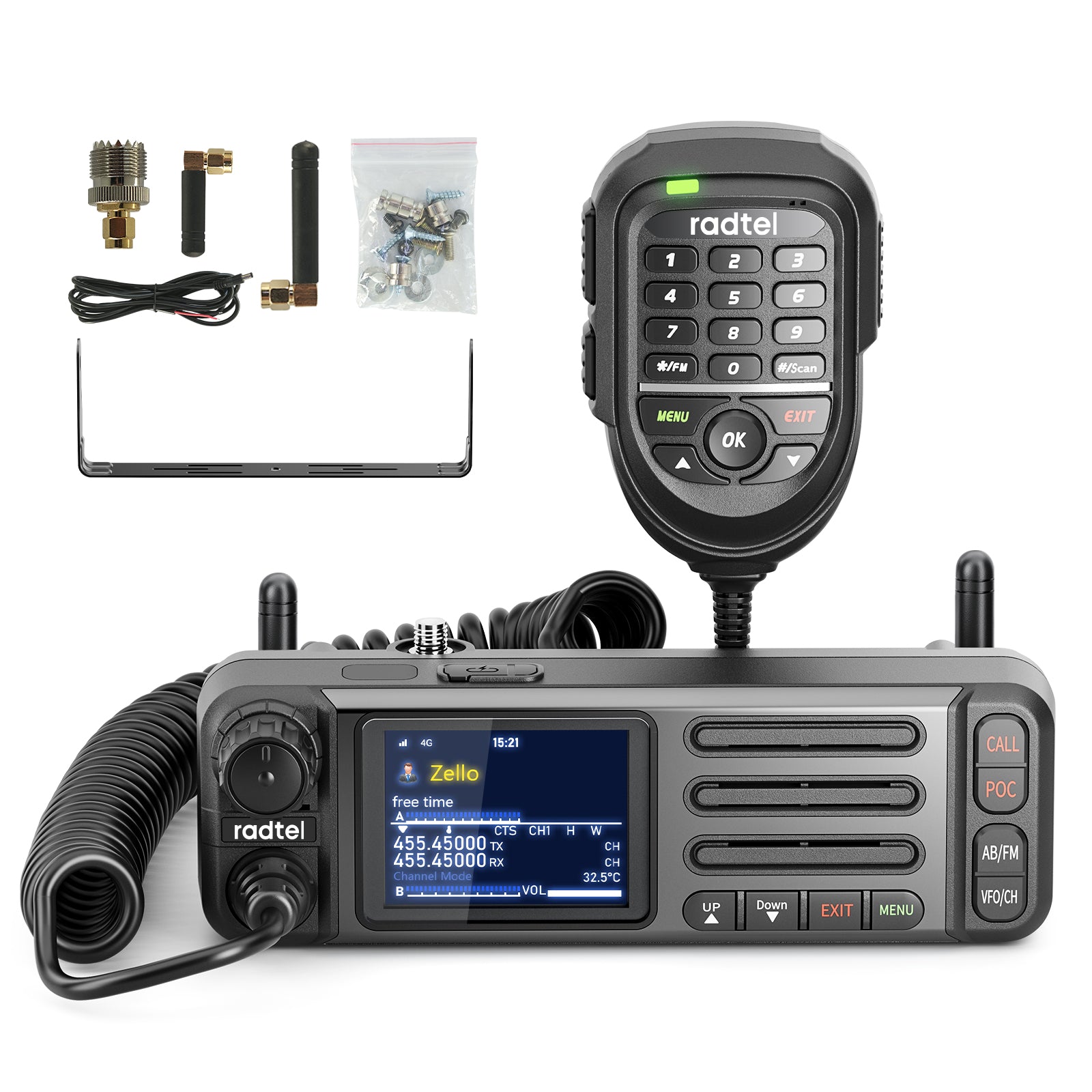

The package includes 1 pcs P89 Radios and Platform fee, If you select with sim card option, each radio with a SIM card offering 1 year of free usage. After the first year, the SIM card fee is $15 per card annually. The platform remains free of charge at all times."
The platform link is http://www.poc-global.com/
If you select a option without sim card, you need to buy a local sim card (AT&T, T-Mobile, Verizon)
Radtel P89 POC+UHF Mobile Radio Andriod OS 400-470Mhz 35W Power Nationwide 5000 Miles with Zello WI-FI Bluetooth Unlimited Range
Main Menu Functions
(Press “MENU” or “OK” to enter)
1. Platform Configuration (POC Mode)
-
Supported Platforms:
-
POC Global
-
Real PTT (Smart-PTT)
-
Zello
-
Xinduijiang
-
-
Path:
Settings → Radio Settings → Select POC
2. Channel Settings
-
Channel Alias
-
Use mic to input numbers.
-
To edit with letters, use PC programming software.
-
-
Bandwidth
-
Options: 12.5 kHz or 25 kHz
-
-
Power
-
Options: Low / High
-
-
TX Frequency
-
Input directly via mic or soft keyboard
-
-
RX Frequency
-
Input directly via mic or soft keyboard
-
-
Send CSS
-
Modes: CTCSS / DCS_N / DCS_I
-
Select value from list
-
-
Receive CSS
-
Modes: CTCSS / DCS_N / DCS_I
-
Select value from list
-
3. Channel List
-
Create New Channel
-
Select “+” icon and press “MENU”
-
-
Delete Channels
-
To delete all: Use delete icon
-
To delete/edit individual: Select a channel → MENU → Enable/Edit/Delete
-
4. Functional Settings
Analog Scanning
-
Configure scan parameters, then select "Start Scanning"
Stepped Frequency
-
Options: 5 / 6.25 / 12.5 / 25 / 50 / 100 kHz
Frequency Matching
-
Enter matching mode → Press PTT on another device → Frequencies align automatically
Temperature Threshold
-
Set "Open Threshold" and "Close Threshold"
(Values must be different to ensure fan operation)
TOT (Time-Out Timer)
-
Set maximum talk duration per transmission
Analog PTT Tone
-
On/Off: Emits a beep when analog PTT is pressed
Public Network Switch
-
On/Off: Disables POC features when off (Airplane mode)
Analog Switch
-
On/Off: Disables analog mode when off
Transfer Switch
-
On/Off:
-
Enabled: Works as repeater only (POC ↔ Analog)
-
Disabled: Normal operation
-
Play Local Sound During Transfer
-
On/Off: Play received audio locally during relay
Analog Power Saving
-
On/Off: Enable analog mode power-saving
Reception Priority
-
Options:
-
Public Network Priority
-
Analog Priority
(When both signals are received simultaneously)
-
Restore Default
-
Resets all channel frequencies to factory default
Simulation Upgrade
-
Update analog firmware via computer
Simulated Version Number
-
Displays current analog firmware version
5. Settings Menu
Mobile SIM Card Configuration
(Not detailed)
Wi-Fi
-
Enable/Disable
-
Scan and connect to available WLANs
Bluetooth
-
Under development, may not be supported
Radio Settings
-
Platform selection (POC Global / Real PTT / Zello / etc.)
Display
-
Adjust brightness, night mode, and screen sleep timer
Sound
-
Adjust ringtones, alerts, and tones
-
Media volume via “Power on” knob
Storage
(Not detailed)
Date & Time
-
Auto or manual time settings (network sync supported)
Location
-
GPS (if available)
Language & Input
-
Supported languages:
-
English
-
Simplified Chinese
-
Traditional Chinese
-
Backup
-
"Erase All Data" (Factory Reset – Password required)
About
-
View IMEI, SIM status, IP address, etc.
