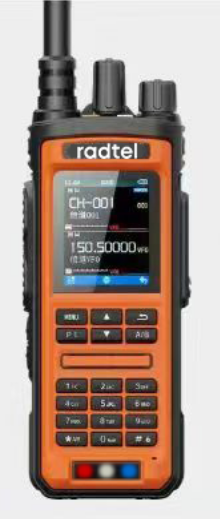

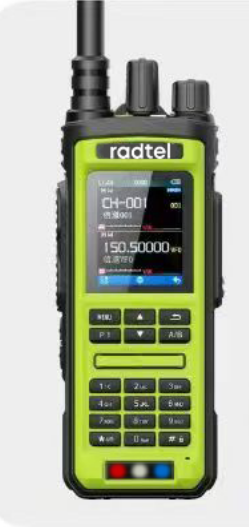

Radtel RT-820W Dual-Band Two-Way Radio （VHF 20W/UHF 18W)

Professional Dual-Band Radio with Advanced Signaling & Fast Team Setup

The Radtel RT-820W is a versatile dual-band handheld two-way radio designed for users who need flexible communication, extensive channel management, and advanced signaling features.

With support for VHF 136–174 MHz and UHF 400–470 MHz, up to 500 channels, a large function keypad, 360° encoder, dual PTT buttons, and a range of analog and digital features, the RT-820W is suitable for amateur radio, outdoor activities, team communication, and professional applications where permitted by local regulations.

Key Features

📡 Dual-Band VHF & UHF

Supports:

• VHF: 136–174 MHz
• UHF: 400–470 MHz
• Same-frequency simplex and different-frequency simplex operation
• Convenient UV band switching

💾 500 Channel Capacity

Store up to 500 channels with frequency and related channel information, making it easier to organize different communication groups and operating frequencies.

🔎 Built-In Frequency Measurement

The RT-820W includes a frequency measurement and decoding function. When another radio is transmitting, the RT-820W can measure the frequency and store the result into a channel, making it easier to quickly set up communication with compatible radios.

👥 Quick Team Formation

The Quick Team function allows multiple compatible radios to quickly synchronize to a common channel.

One radio can act as the transmitter while other radios enter Quick Team Reception mode. After synchronization, members of the same group can communicate with each other.

🔐 Digital Communication Features

The RT-820W supports digital service functions including:

• Radio alias/name display
• Caller name display
• Local group communication
• Digital voice password
• Digital anti-cracking function

The digital voice password can be configured from 0001–8999, and compatible radios must use the same password for communication. The digital anti-cracking function supports numerical coding from 1–49999.

🎙️ CTCSS / DCS

Choose from 50 CTCSS tones and 105 DCS codes for selective communication and reduced unwanted traffic from other users sharing the same frequency.

📞 DTMF Signaling

The RT-820W supports DTMF signaling with 16 codes, including encoding, decoding, and dialing list configuration for selective calling applications.

🚨 2-Tone & 5-Tone Signaling

2-tone and 5-tone signaling can be used for selective calling and triggering specific operations. The function is suitable for applications such as alarms, scheduling, coordination, and emergency communication.

🎛️ Flexible Controls

The radio features:

• 360° rotary encoder
• Numeric keypad
• LCD display
• Dual PTT buttons
• Programmable side buttons
• Emergency alarm button
• Strobe light
• External microphone/headset connection

The side buttons can be configured for different functions using short-press and long-press settings.

🔊 Wide Range of Channel Settings

The display provides information for channel parameters including:

• High / Low power
• Wide / Narrow bandwidth
• CTCSS / DCS
• VOX
• Frequency shift
• Reverse frequency
• Other system parameters

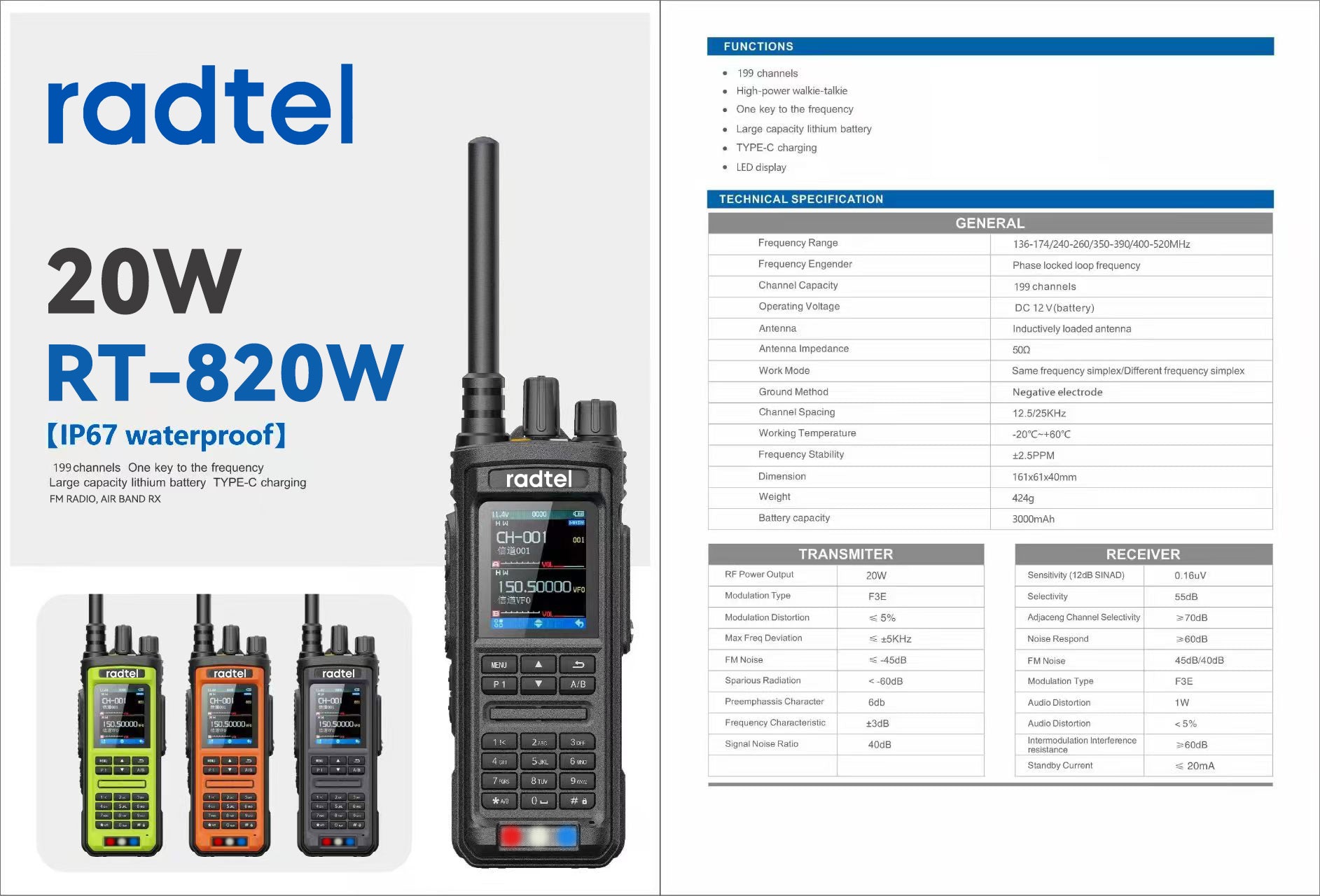

Technical Specifications

The specifications above are based on the RT-820W instruction manual.

What's in the Box

According to the manual, the standard package includes:

• 1 × RT-820W Two-Way Radio
• 2 × High-Gain Antennas
• 1 × Lithium Battery Pack
• 1 × Smart Charger
• 1 × Belt/Back Clip
• 1 × Carrying Strap
• 1 × User Manual

⚠️ Important

The RT-820W is a radio transmitting device. Operation is subject to applicable laws, licensing requirements, frequency allocations, and operating conditions in your country or region. Users should operate the radio only on frequencies and with parameters permitted by local regulations. The manual specifically notes that radio operation may require a local radio station license depending on the classification and use
